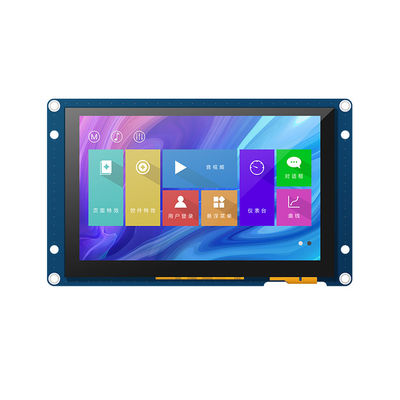

800x480 5 Inch Ips Display Module RGB 65K 5 Inch Capacitive Touch Screen HMI
| Place of Origin | China |
|---|---|
| Model Number | TJC8048X550_011CS |
| Minimum Order Quantity | 50pcs |
| Price | ￥159/PCS |
| Delivery Time | 28day |
| Payment Terms | L/C, T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 5.0inch | Resolution | 800*480 |
|---|---|---|---|
| Touch | Capacitive Touch | Models | TJC8048X550_011CS |
| Operating Voltage | 5V | Display Color | RGB 65K Color |
| Highlight | 800x480 5 Inch Ips Display Module,5 Inch Ips Display Module RGB 65K,RGB 65K 5 Inch Capacitive Touch Screen |
||
Product Description
5.0 inch Capacitive touch 5.0”HMI serial port screen 800 * 480 no code font image support video playback.”

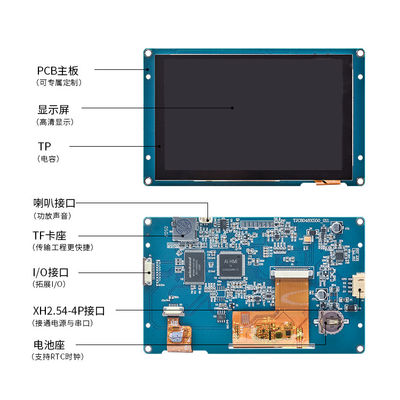

The main hardware is: LCD module + Touch Screen + PCB + electronic components
Product features: development simple editing
applicable Industries: New Energy, financial equipment, engineering machinery, medical equipment, industrial equipment and consumer electronics
Hardware Features
5.0” LCD-TFT HMI display module
800 x 480 screen resolution
RGB 65K true-to-life colours
Capacitive touch panel
300 nit Brightness
Onboard 200MHz MCU
512 KB of SRAM
128 MB of Flash memory
1024 Byte EEPROM
XH2.54 4 Pins (+5V, TX, RX, GND) TTL serial interface
1.25T-2-2A Audio port for external speaker connection
8 Digital extended GPIO
(IO0-IO7 support input, output and component binding event, IO6-IO7 support PWM)
Built-in RTC support
