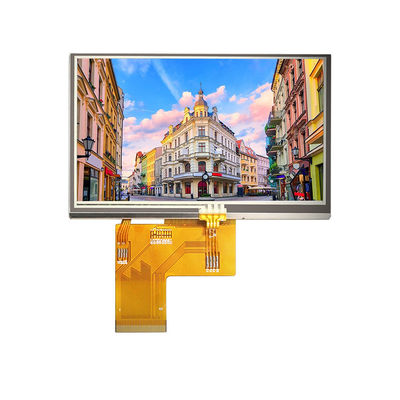

ILI6485A Parallel LCD Display 4.3 Inch Resistive Touch 350 Bright Tft Lcd Module

Name: ILI6485A Parallel LCD Display 4.3 Inch Resistive Touch 350 Bright Tft Lcd Module
Brand: Shenzhen Jingcai Intelligent Co., Ltd.
SKU: JC4827B043R
Price: 45 USD
Availability: InStock

Model Number:	JC4827B043R
MOQ:	500
Price:	￥45/pcs
Payment Terms:	L/C, T/T
Supply Ability:	5000pcs/day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Size:

4.3inch

Resolution:

480*272

Touch:

Resistance Touch

Models:

JC4827B043R

Driver IC:

ILI6485A

Operating Voltage:

3.3V

Panel Type:

Highlight:

ILI6485A Parallel LCD Display

4.3 Inch Resistive Touch Tft Lcd Module

350 Bright Tft Lcd Module

Product Description

4.3 inch Resistance Touch480xRGBx272 ILI6485A Driver 350 bright TFT lcd display module 40PIN RGB

Small display 4.3 inch lcd touchscreen monitor/4.3 inch tft lcd panel with 500nits

4.3 inch lcd display 480x272/4.3 inch lcd screen/4.3" tft lcd 480x272/4.3 inch lcd module. ST7282 driver ic. resistive or capacitive touch optional.100% brand new A grade quality.full inspection before shipment.

ITEM	Specification	Unit
LCD Typee	a-Si TFT , Transmissive,Normally black	-
LCD Size	4.3	inch
Resolution(W+H)	480(RGB) X 272	pixel
LCM size	105.4(H) X 67.1(V) X 2.9(T)	mm
Active Area	95.04(H) X 53.86(V)	mm
Dot Pitch	0.198(H) X 0.198(V)	mm
Viewing Direction	All o'clock	-
Color Depth	16.7m	-
Pixel Arrangement	RGB-stripe	-
Backlight Type	16 LED , 40mA	-
Surface Luminance	Min 900 , TYP 1000	cd/m2
Surface Treatment	Hardness:3H	-
Interface Type	SPI	-
Input Voltage	3.3	V
With/Without TP	Without	-
Weight	TBD	g

ILI6485A Parallel LCD Display 4.3 Inch Resistive Touch 350 Bright Tft Lcd Module 0
