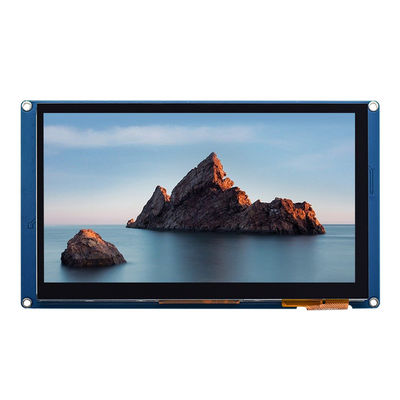

HMI Lcd Display Module Capacitive Touch 7 Inch Touch Tft Lcd 800x480 No Code Font Image
| Place of Origin | China |
|---|---|
| Model Number | TJC8048X570_011CS |
| Minimum Order Quantity | 50pcs |
| Price | ￥189/PCS |
| Delivery Time | 28day |
| Payment Terms | L/C, T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 7.0inch | Model | TJC8048X570_011CS |
|---|---|---|---|
| Resolution | 800*480 | Touch | Capacitive Touch |
| Display Color | RGB 65K Color | Operating Voltage | 5V |
| High Light | HMI Lcd Display Module Capacitive Touch,Lcd Display Module Capacitive Touch 7Inch,7 Inch Touch Tft Lcd 800x480 |
||
Product Description
7.0 inch Capacitive touch 7.0”HMI serial port screen 800 * 480 no code font image support video playback.”
Hardware Features
-
- TJC8048X570_011CS(7.0'' RGB 65K capacitive touchscreen)
-
- Onboard MCU 200MHz and up to 128MB for HMI project
-
- Built-in RTC,EEPROM, 8 digital GPIOs (2 PWM capable)
-
- 4 pins (+5V, TX, RX, GND) TTL serial interface
-
- 300 nit Brightness with 1% interval adjustment
-
- Audio interface
-
- CE and RoHS Compliant
Product Specification
| LCD Type | TV-TN, TFT LCD | |||
| Viewing Angle | TV viewing angle, 70°/70°/40°/30°(L/R/U/D) | |||
| Resolution | 800×480 pixels (support 0°/90°/180°/270°) | |||
| Color | 65k 6R6G6B | |||
| Active Area (A.A.) | 154.08mm (W)×85.92mm (H) | |||
|
Product dimensions |
181mm(L)×108MM(W)×9.3MM(H)
|
|||
| Backlight Mode | LED | |||
| Backlight Service Life | >30000 hours (Time of the brightness decaying to 50% on the condition of continuous working with the maximum brightness) | |||
| Brightness | 300nit | |||
| Brightness Control | 0~100 grade (When the brightness is adjusted to 1%~30% of the maximum brightness, flickering may occur and is not recommended touse in this range) | |||
Human Machine Interface (HMI) solution combining an onboard processor and memory touch display with Editor software for HMI GUI project development. Using the software, you can quickly develop the HMI GUI by drag-and-drop components (graphics, text, button, slider etc.) and ASCII text based instructions for coding how components interact at display side. HMI display connects to peripheral MCU via TTL Serial (5V, TX, RX ,GND) to provide event notifications that peripheral MCU can act on, the peripheral MCU can easily update progress and status back to display utilizing simple ASCII text based instructions.
The Intelligent Series products have more powerful hardware in terms of MCU, Flash storage and SRAM compared with Basic Series and Enhanced Series. The audio, video and animation play functions enriches user’s project HMI interaction. The Intelligent Series supports advanced software features and functions such as transparent component, page loading effect, component Move and Drag .etc.
