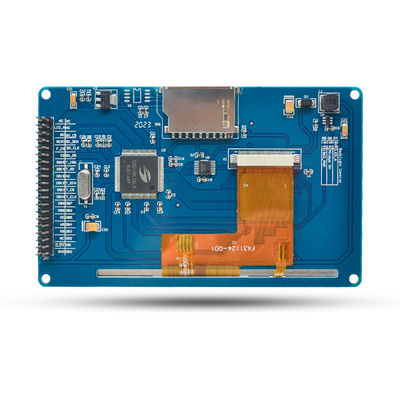

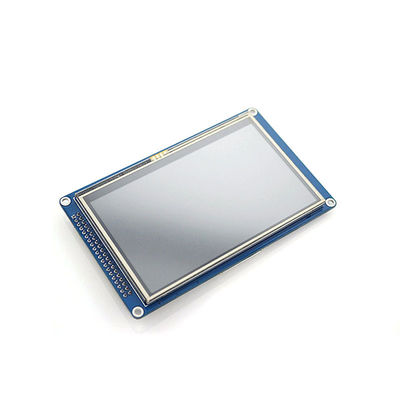

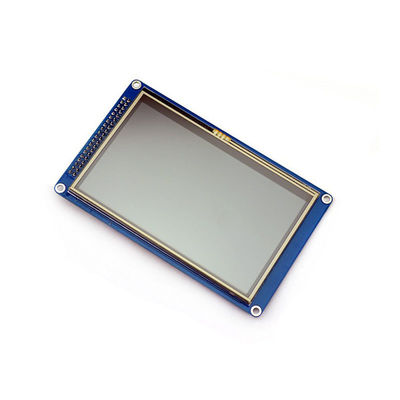

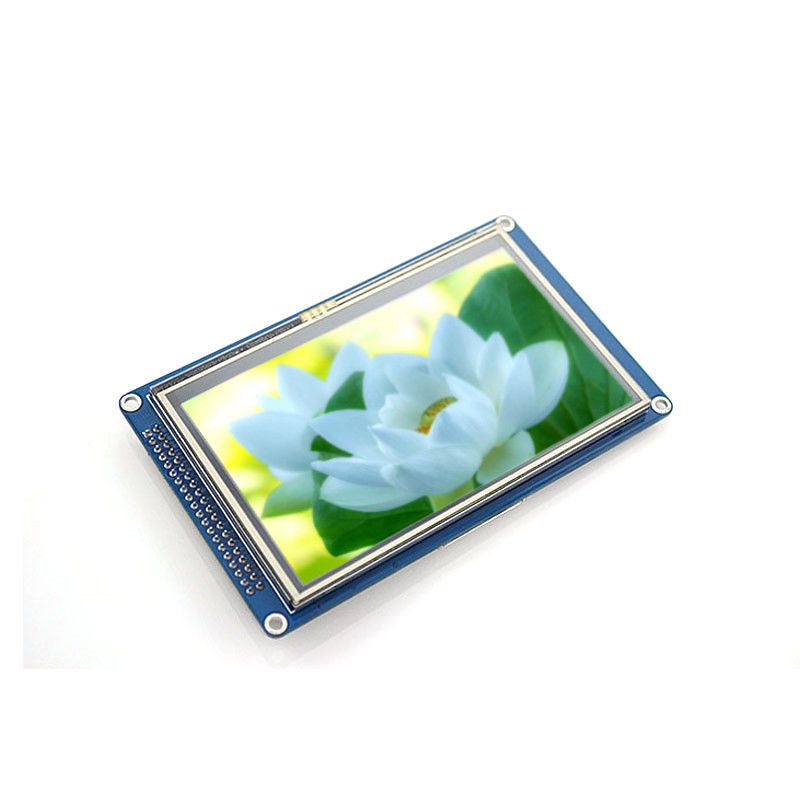

SSD1963 LCD Display Module RGB 480x272 4.3 Inch Tft Lcd Module With Touch
| Place of Origin | China |
|---|---|
| Model Number | JC4827M043R |
| Minimum Order Quantity | 50PCS |
| Price | ￥178/PCS |
| Delivery Time | 28day |
| Payment Terms | L/C, T/T |
| Supply Ability | 5000PCS/day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | JC4827M043R | Size | 4.3 Inch |
|---|---|---|---|
| Resolution | RGB:480X272 | Driver Chip | SSD1963 |
| External Dimensions | 120(L)X74(W)MM | Touch Type | Resistive Touch |
| Highlight | SSD1963 LCD Display Module RGB,LCD Display Module RGB 480x272,SSD1963 4.3 Inch Tft Lcd Module |
||
Product Description
Description:
1: Widely used
2: Support SPI FLASH
3: Built-in SD card slot, support SD card expansion
4: Support three backlight control methods (constant light, GPIO control, PWM control)
5: Support 480x272 resolution, the display effect is very clear
Product description:
- 4.3-inch high-definition color screen, support 16BIT RGB 65K color display, display rich colors
- Support 480x272 resolution, the display effect is very clear
- Support 16-bit parallel bus switching, fast transmission speed
- Compatible with capacitive touch screen and resistive touch screen
- Support SPI FLASH
- Built-in SD card slot, support SD card expansion
- Support three backlight control methods (constant light, GPIO control, PWM control)
- Provide sample programs for STM32 and C51 platforms
- Military-grade process standards, long-term stable work
- Provide underlying drive technology support
Notice:
The pins starting with A and T are related pins of the resistive touch screen;
B. The pins at the beginning of SD are SD card related pins;
The pins starting with C and F are related to SPI FLASH;
D. The rest are pins related to the LCD screen;
E. SPI FLASH is not soldered. If you need to use it, please solder it yourself.
Packing included:
1*touch screen
Product Parameters
| Name | Parameter |
| SKU | JC4827M043R |
| Display Color | RGB 565 |
| Touch mode | Resistive touch |
| Screen Size | 4.3(inch) |
| Type | TFT |
| Driver IC | SSD1963 |
| Resolution | 480*272(Pixel) |
| Module Interface | 40PIN parallel port |
| Active Area | 95.04(L))X53.86(W)MM |
| External dimension | 120(L)X74(W)MM |
| Operating Temperature | -20℃~60℃ |
| Storage Temperature | -30℃~70℃ |
| Operating Voltage | 3.3V |
| Visual angle | 6:00 o'clock |
| PIN spacing | PIN spacing |
| Connection method | 2.54 pin |
| Product Weight(Package containing) | 150g |
Interface Definition
| Number | Pin Label | Pin Description |
| 1 | GND | Ground |
| 2 | 3.3V | 3.3V power input |
| 3 | NC | Empty feet |
| 4 | RS | Register/Data select signal, 0: Register 1: Data |
| 5 | WR | Write operation |
| 6 | RD | Read operation |
| 7 | DB8 | Data port |
| 8 | DB9 | Data port |
| 9 | DB10 | Data port |
| 10 | DB11 | Data port |
| 11 | DB12 | Data port |
| 12 | DB13 | Data port |
| 13 | DB14 | Data port |
| 14 | DB15 | Data port |
| 15 | CS | LCD chip select signal, active low |
| 16 | F_CS | Flash chip select |
| 17 | REST | LCD reset signal, low level reset |
| 18 | NC | Empty feet |
| 19 | LED_A | Backlight control positive |
| 20 | NC | Empty feet |
| 21 | DB0 | Data port |
| 22 | DB1 | Data port |
| 23 | DB2 | Data port |
| 24 | DB3 | Data port |
| 25 | DB4 | Data port |
| 26 | DB5 | Data port |
| 27 | DB6 | Data port |
| 28 | DB7 | Data port |
| 29 | T_CLK | Touch SPI bus clock signal |
| 30 | T_CS | Touch screen chip select signal, low level enable |
| 31 | T_DIN | Touch SPI bus input |
| 32 | NC | Empty feet |
| 33 | T_DO | Touch SPI bus output |
| 34 | T_IRQ | Touch screen interrupt signal, low level when there is touch |
| 35 | SD_DO | SD card data output pin |
| 36 | SD_CLK | SD card clock pin |
| 37 | SD_DIN | SD card data input pin |
| 38 | SD_CS | SD card select pin |
| 39 | NC | Empty feet |
| 40 | NC | Empty feet |
