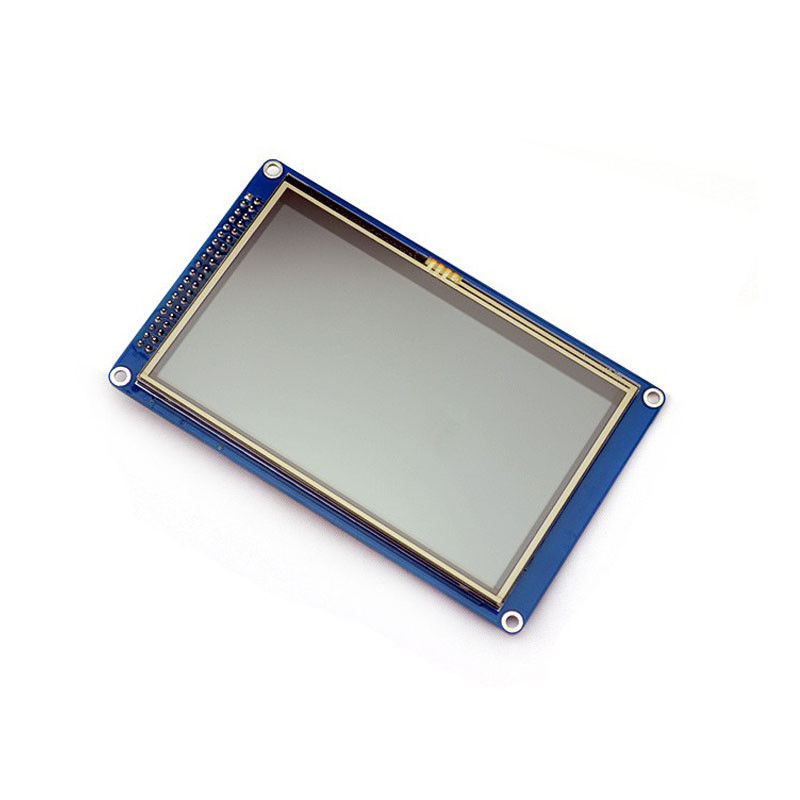

4.3inch Without Touch 4.3" 480*272 SSD1963 TFT Display Screen LCD TFT Module

Features:

1. 4.3-inch high-definition color screen, support 16BIT RGB 65K color display, display rich colors

2. Support TN screen with 480x272 resolution, clear display effect

3. Support 16-bit parallel bus switching, fast transmission speed

4. Support SPI FLASH

5. Comes with SD card slot, supports SD card expansion

6. Support three backlight control methods (constant light, GPIO control, PWM control)

7. Provide sample programs for STM32 and C51 platforms

8. Military-grade process standards, long-term stable work

9. Provide technical support for underlying drivers

Product parameters:

Display color: RGB565 65K color

Size: 4.3(inch)

Type: TFT

Driver chip: none

Resolution: TN: 480x272(Pixel)

Module interface: 16-bit parallel port

Touch screen type: Without touch

Effective display area (AA area): 95.04.00x53.858 (mm)

Module PCB base plate size: 120.00x74.00(mm)

Working temperature: -10℃~60℃

Storage temperature: -20℃~70℃

Input voltage: 3.3V

Package Included:

TN screen resistive touch version 4.3 inch TFT high-definition color screen *1

Notice:

The pins starting with A and T are related pins of the resistive touch screen;

B. The pins at the beginning of SD are SD card related pins;

The pins starting with C and F are related to SPI FLASH;

D. The rest are pins related to the LCD screen;

E. SPI FLASH is not soldered. If you need to use it, please solder it yourself.


Packing included:

1*touch screen
