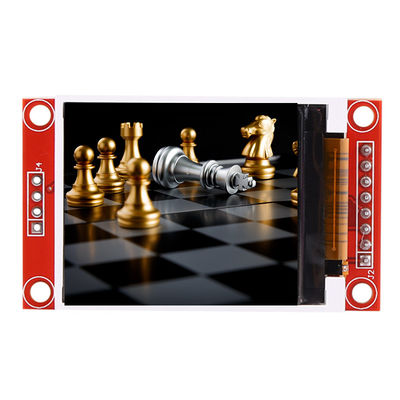

SPI 1.8 Inch Tft Lcd Module ST7735 1.8 Spi 128x160 Tft Module TFT Display Screen
| Place of Origin | China |
|---|---|
| Model Number | JC1216S018N |
| Minimum Order Quantity | 300 |
| Price | ￥24/PCS |
| Delivery Time | 28day |
| Payment Terms | L/C, T/T |
| Supply Ability | 5000pcs/day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 1.8inch | Resolution | 128*160 |
|---|---|---|---|
| Touch | Without Touch | Name | JC1216S018N |
| Driver IC | ST7735S | Product Weight | 15(g) |
| Highlight | SPI 1.8 Inch Tft Lcd Module,1.8 Inch Tft Lcd Module ST7735,ST7735 1.8 Spi 128x160 Tft Module |
||
Product Description
The LCD module hardware circuit comprises two parts: an LCD display control circuit and a backlight control circuit.
The LCD display control circuit is used to control the pins of the LCD, including control pins and data transfer pins.
The backlight control circuit is used to control the backlight to be on and off. Of course, if the backlight is not required to be controlled, the backlight control pin can be directly connected to the 3.3V power supply without using the circuit.
● 1.8-inch color screen,support 65K color display,display rich colors ·
● 128X160 resolution, clear display·
● Using the SPI serial bus, it only takes a few IOs to illuminate the display
● Easy to expand the experiment with SD card slot·
● Military-grade process standards, long-term stable work ·
● Provide underlying driver technical support
| Name | Parameter |
| SKU | JC1216S018N |
| Display Color | RGB 65K color |
| Touch mode | Without touch |
| Screen Size | 1.8(inch) |
| Type | TFT |
| Driver IC | ST7735S |
| Resolution | 128*160 (Pixel) |
| Module Interface | 4-wire SPI |
| Active Area | 35.04(L)X28.03(W)MM |
| External dimension | 58.0(L)X34.7(W)X2.30(H)MM |
| Operating Temperature | -20℃~60℃ |
| Storage Temperature | -30℃~70℃ |
| Operating Voltage | 3.3V |
| Visual angle | 12:00 o'clock |
| Product Weight(Package containing) | 15(g) |
Interface Definition
| Number | Pin Label | Pin Description |
| 1 | VCC | 5.0 power input |
| 2 | GND | Power ground |
| 3 | CS | LCD chip select signal, active low |
| 4 | REST | LCD reset signal, low level reset |
| 5 | A0 | Control register selection |
| 6 | SDA | Control data transmission |
| 7 | CLK | Clock signal |
| 8 | LED | Connected to 3.3V |
