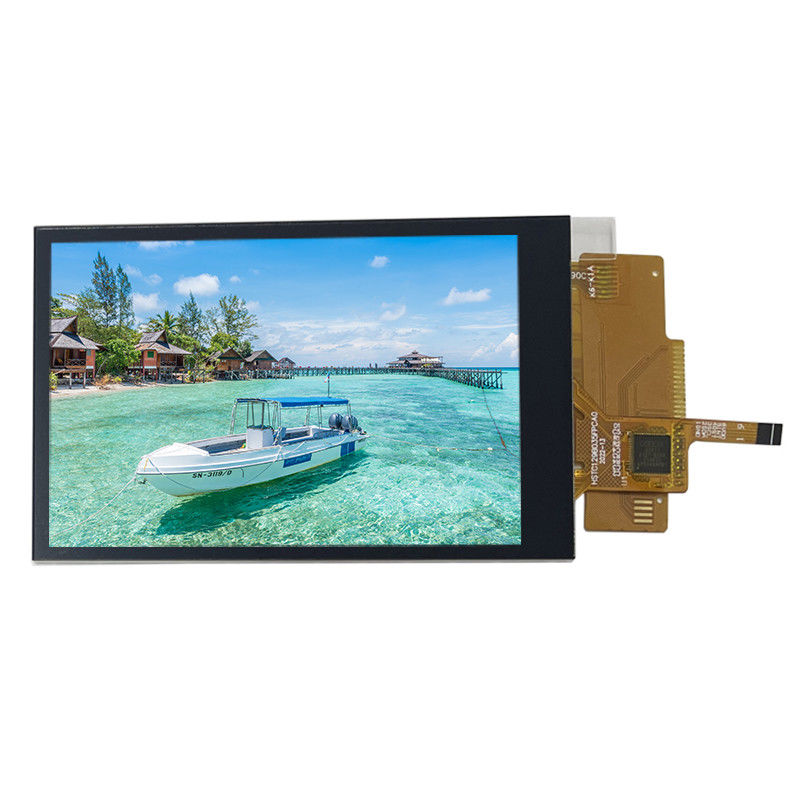

Capacitive Touch Ili9488 Touch Screen 320*480 3.5 Tft Lcd Display SPI
| Place of Origin | China |
|---|---|
| Model Number | JC3248A035C |
| Minimum Order Quantity | 500 |
| Price | ￥39/pcs |
| Delivery Time | 28day |
| Payment Terms | L/C, T/T |
| Supply Ability | 5000pcs/day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 3.5inch | Resolution | 320*480 |
|---|---|---|---|
| Touch | Capacitive Touch | Name | JC3248A035C |
| Driver IC | IL9488 | External Dimension | 85.5(L)X54.94(W)X4.10(H)MM |
| Highlight | Capacitive Touch Ili9488 Touch Screen,Ili9488 Touch Screen 320*480,320*480 3.5 Tft Lcd Display SPI |
||
Product Description
- 86.84 x 74.84 x 4.10 mm
- 320 X RGB X 240 Dots
- DC 3.3V 3.5 inch TFT LCD Display Module ILI9488 Driver 4 Wire SPI Interface320x480.
- Driver: ILI9488
- Capacitive Touch Screen,WHITE LED backlight, Top viewing angle, Wide temperature range, Transmissive polarizer, 350 NITS, RoHS Compliant
- 3.5 inch 3.5”CTC LCD IL9488 TFT LCD Display Screen.
- DC 3.3V 3.5 inch TFT LCD Display Module ILI9488 Driver 4 Wire SPI Interface320x480.
- Industrial quality.
- Long-term stable supply.
- With a wide range of standard and customized LCD and TFT modules, BACKLIGHT. We offer to customers the solutions and technologies best suited for the applications.
- Our products have been applied in a wide range of industries including financial devices, energy meter equipment, check-in machines, fiscal processors, portable devices, intelligent home solutions, medical facilities and industrial equipment.
| Name | Parameter |
| SKU | JC3248A035C-1 |
| Display Color | RGB 65K color |
| Touch mode | Capacitive touch |
| Screen Size | 3.5(inch) |
| Type | TFT |
| Driver IC | IL9488 |
| Resolution | 320*480 (Pixel) |
| Module Interface | 4-wire SPI |
| Active Area | 73.44(L)X48.96(W)MM |
| External dimension | 85.5(L)X54.94(W)X4.10(H)MM |
| Operating Temperature | -20℃~60℃ |
| Storage Temperature | -30℃~70℃ |
| Operating Voltage | 3.3V |
| Visual angle | 12:00 o'clock |
| Product Weight(Package containing) | 30(g) |
Interface Definition
| Number | Pin Label | Pin Description |
| 1 | GND | Power ground |
| 2 | RESET | LCD reset signal, low level reset |
| 3 | SCL | Clock signal |
| 4 | RS | Instruction Data Selection L: Instruction H: Data |
| 5 | CS | LCD chip select signal, active low |
| 6 | SDA | Control data transmission |
| 7 | SDO | Control data output |
| 8 | GND | Power ground |
| 9 | VCC | 2.8~3.3V power input |
| 10 | LEDA | Backlight LED positive extreme |
| 11 | K1 | Backlight LED negative extreme |
| 12 | K2 | Backlight LED negative extreme |
| 13 | K3 | Backlight LED negative extreme |
| 14 | K4 | Backlight LED negative extreme |
| 15 | XL | Touch x axis |
| 16 | YU | Touch y axis |
| 17 | XR | Touch x axis |
| 18 | YU | Touch y axis |
