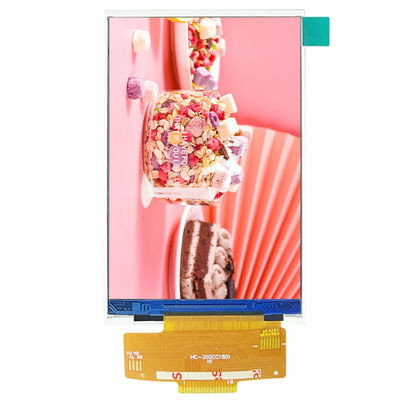

4 Wire SPI 3.5 Tft Display 320*480 Tft Display Spi IL9488 Lcd 3.5 Inch
| Place of Origin | China |
|---|---|
| Model Number | JC3248A035N |
| Minimum Order Quantity | 500 |
| Price | ￥39/pcs |
| Delivery Time | 28day |
| Payment Terms | L/C, T/T |
| Supply Ability | 5000pcs/day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 3.5inch | Resolution | 320*480 |
|---|---|---|---|
| Touch | Without Touch | Name | JC3248A035N |
| Driver IC | ILI9488 | External Dimension | 85.5(L)X54.94(W)X2.50(H)MM |
| High Light | 4 Wire SPI 3.5 Tft Display,320*480 Tft Display Spi,IL9488 Lcd 3.5 Inch |
||
Product Description
1)TFT LCD
Size: This model is a 3.5-inch LCD screen.
Brightness: The standard brightness is about 350nit, which can be designed according to customer requirements.
Polarizer: TV, EWV, Ofilm. This article uses EWV polarizer.
Connection method: 14PIN welded junction with 0.8 spacing.
2) Touch mode
This is a touchless LCD screen. We have the corresponding resistance and capacitance touch screens for users to choose. The capacitive touch uses G+G structure.
3)Delivery date
We generally have samples in stock, and the delivery time for batch production is about 15 working days.
| Name | Parameter |
| SKU | JC3248B035N |
| Display Color | RGB 65K color |
| Touch mode | Without touch |
| Screen Size | 3.5(inch) |
| Type | TFT |
| Driver IC | IL9488 |
| Resolution | 320*480 (Pixel) |
| Module Interface | 4-wire SPI |
| Active Area | 73.44(L)X48.96(W)MM |
| External dimension | 85.5(L)X54.94(W)X2.50(H)MM |
| Operating Temperature | -20℃~60℃ |
| Storage Temperature | -30℃~70℃ |
| Operating Voltage | 3.3V |
| Visual angle | 12:00 o'clock |
| Product Weight(Package containing) | 30(g) |
Interface Definition
| Number | Pin Label | Pin Description |
| 1 | GND | Power ground |
| 2 | RESET | LCD reset signal, low level reset |
| 3 | SCL | Clock signal |
| 4 | RS | Instruction Data Selection L: Instruction H: Data |
| 5 | CS | LCD chip select signal, active low |
| 6 | SDA | Control data transmission |
| 7 | SDO | Control data output |
| 8 | GND | Power ground |
| 9 | VCC | 2.8~3.3V power input |
| 10 | LEDA | Backlight LED positive extreme |
| 11 | K1 | Backlight LED negative extreme |
| 12 | K2 | Backlight LED negative extreme |
| 13 | K3 | Backlight LED negative extreme |
| 14 | K4 | Backlight LED negative extreme |
| 15 | XL | Touch x axis |
| 16 | YU | Touch y axis |
| 17 | XR | Touch x axis |
| 18 | YU | Touch y axis |
