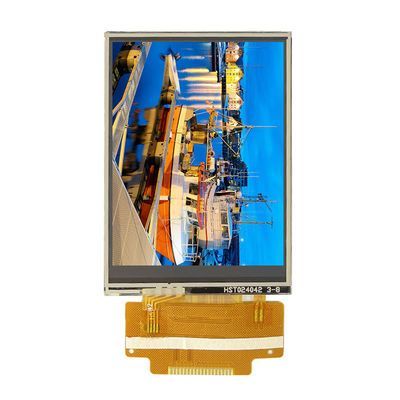

2.4 Inch Tft Lcd Touch Screen Module 240x320 ILI9341V Tft Lcd Panel SPI LCD TFT Module
| Place of Origin | China |
|---|---|
| Model Number | JC2432B024R |
| Minimum Order Quantity | 500 |
| Price | ￥38/pcs |
| Delivery Time | 28day |
| Payment Terms | L/C, T/T |
| Supply Ability | 5000pcs/day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | JC2432B024R | Size | 2.4inch |
|---|---|---|---|
| Resolution | 240*320 | Touch | Resistance Touch |
| Viewing Angle | TN 12:00 O'clock | Driver IC | ILI9341 |
| Outline Dimension | 60.26(L)X42.72(W)X2.20(H)MM | Module Interface | 4-wire SPI |
| High Light | 2.4 Inch Tft Lcd Touch Screen Module 240x320,ILI9341V Tft Lcd Panel,ILI9341V 2.4 Inch Tft Lcd Touch Screen Module |
||
Product Description
With a wide range of standard and customized LCD and TFT modules, BACKLIGHT. We offer to customers the solutions and technologies best suited for the applications. Our products have been applied in a wide range of industries including financial devices, energy meter equipment, check-in machines, fiscal processors, portable devices, intelligent home solutions, medical facilities and industrial equipment.
2.4 inch LCD ILI9341V TFT LCD Display Screen. Operating Voltage 3.3 V DC power supply, drive chip ILI9341V Resolution 240*320 (Pixel). outline Dimension 60.26(L)X42.72(W)X2.20(H)MM,Viewing Angle TN 12:00 o'clock,Module Interface 4-wire SPI
| Name | Parameter |
| SKU | JC2432A024R |
| Display Color | RGB 65K color |
| Touch mode | Resistance touch |
| Screen Size | 2.4(inch) |
| Type | TFT |
| Driver IC | ILI9341V |
| Resolution | 240*320 (Pixel) |
| Module Interface | 4-wire SPI |
| Active Area | 48.96(L)X36.72(W)MM |
| External dimension | 60.26(L)X42.72(W)X2.20(H)MM |
| Operating Temperature | -20℃~60℃ |
| Storage Temperature | -30℃~70℃ |
| Operating Voltage | 3.3V |
| Visual angle | 12:00 o'clock |
| Product Weight(Package containing) | 20(g) |
Interface Definition
| Number | Pin Label | Pin Description |
| 1 | GND | Power ground |
| 2 | RESET | LCD reset signal, low level reset |
| 3 | SCL | Clock signal |
| 4 | D/C | Instruction Data Selection L: Instruction H: Data |
| 5 | CS | LCD chip select signal, active low |
| 6 | SDA | Control data transmission |
| 7 | SDO | Control data output |
| 8 | GND | Power ground |
| 9 | VCC | 2.8~3.3V power input |
| 10 | LEDA | Backlight LED positive extreme |
| 11 | K1 | Backlight LED negative extreme |
| 12 | K2 | Backlight LED negative extreme |
| 13 | K3 | Backlight LED negative extreme |
| 14 | K4 | Backlight LED negative extreme |
| 15 | XL | Touch x axis |
| 16 | YU | Touch y axis |
| 17 | XR | Touch x axis |
| 18 | YU | Touch y axis |
