ILI9488 SPI LCD Display 320x480 3.5 Inch Tft Lcd Display Tft Display 3.5 Inch
| Place of Origin | China |
|---|---|
| Model Number | JC3248A035R |
| Minimum Order Quantity | 500 |
| Price | ￥39/pcs |
| Delivery Time | 28day |
| Payment Terms | L/C, T/T |
| Supply Ability | 5000pcs/day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 3.5inch | Resolution | 320*480 |
|---|---|---|---|
| Touch | Resistance Touch | Name | JC3248A035R |
| Driver IC | ILI9488 | Product Weight | 35(g) |
| Highlight | ILI9488 SPI LCD Display,320x480 3.5 Inch Tft Lcd Display,ILI9488 Tft Display 3.5 Inch |
||
Product Description

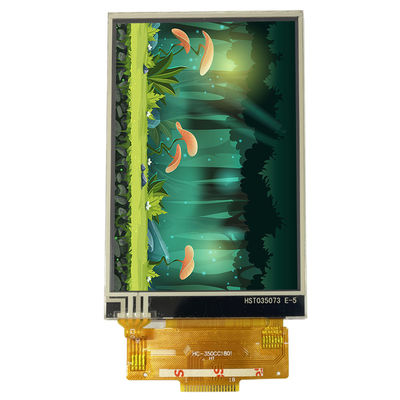

*JC3248A035R is a 320x480 resolution TFT LCD screen with a resistive touch screen.
*It consists of TFT LCD panel, driver IC, FPC, backlight and RTP.
*The backlight brightness is about 350cd/m2.
*Specific touch screens can be designed and customized.
*Comply with RoHS standards.
*If you can't find the right one, please contact us for recommendation.
| Name | Parameter |
| SKU | JC3248A035C-1 |
| Display Color | RGB 65K color |
| Touch mode | Resistance touch |
| Screen Size | 3.5(inch) |
| Type | TFT |
| Driver IC | IL9488 |
| Resolution | 320*480 (Pixel) |
| Module Interface | 4-wire SPI |
| Active Area | 73.44(L)X48.96(W)MM |
| External dimension | 85.5(L)X54.94(W)X3.90(H)MM |
| Operating Temperature | -20℃~60℃ |
| Storage Temperature | -30℃~70℃ |
| Operating Voltage | 3.3V |
| Visual angle | 12:00 o'clock |
| Product Weight(Package containing) | 30(g) |
Interface Definition
| Number | Pin Label | Pin Description |
| 1 | GND | Power ground |
| 2 | RESET | LCD reset signal, low level reset |
| 3 | SCL | Clock signal |
| 4 | RS | Instruction Data Selection L: Instruction H: Data |
| 5 | CS | LCD chip select signal, active low |
| 6 | SDA | Control data transmission |
| 7 | SDO | Control data output |
| 8 | GND | Power ground |
| 9 | VCC | 2.8~3.3V power input |
| 10 | LEDA | Backlight LED positive extreme |
| 11 | K1 | Backlight LED negative extreme |
| 12 | K2 | Backlight LED negative extreme |
| 13 | K3 | Backlight LED negative extreme |
| 14 | K4 | Backlight LED negative extreme |
| 15 | XL | Touch x axis |
| 16 | YU | Touch y axis |
| 17 | XR | Touch x axis |
| 18 | YU | Touch y axis |
