RGB 480x272 Tft Lcd Display ILI6485A Driver 350 Bright Tft Lcd Screen Module 40PIN
| Place of Origin | China |
|---|---|
| Model Number | JC4827B043N |
| Minimum Order Quantity | 500 |
| Price | ￥45/pcs |
| Delivery Time | 28day |
| Payment Terms | L/C, T/T |
| Supply Ability | 5000pcs/day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 4.3inch | Resolution | 480*272 |
|---|---|---|---|
| Touch | Without Touch | Models | JC4827B043N |
| Driver IC | ILI6485A | Operating Voltage | 3.3V |
| Panel Type | TN | ||
| Highlight | RGB 480x272 Tft Lcd Display,480x272 Tft Lcd Display ILI6485A Driver,Tft Lcd Screen Module 40PIN |
||
Product Description

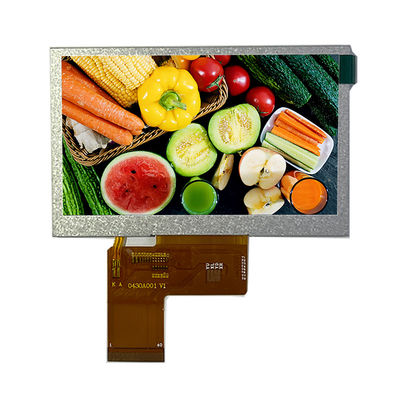

4.3 inch Without Touch480xRGBx272 ILI6485A Driver 350 bright TFT lcd display module 40PIN RGB
JC4827B043N is a color active matrix LCD module incorporating amorphous silicon
TFT (Thin Film Transistor). It is composed of a color TFT-LCD panel, driver IC, FPC and a back light unit. The module display area contains 480X272pixels. This product accords with RoHS environmental criterion
Parameter
| LCD size | 4.3 inch(Diagonal) |
| LCD type | TFT |
| Resolution | 800x480 |
| Module size | 105.45x67.2x3mm |
| Active area | 95.04x53.856mm |
| Pixel Pitch | . |
| Viewing direction | Free |
| Backlight | LED |
| Driver IC | TBA |
| Storage temperature | -30 to +70 |
Pin
| 1 | LEDK | LED DRIVER | Backlight cathode. | - |
| 2 | LEDA | LED DRIVER | Backlight anode. | - |
| 3 | GND | PWR SUPPLY | Power ground. | - |
| 4 | VCC | PWR SUPPLY | Power supply for digital circuit. | - |
| 5-12 | R0-R7 | I/O | Red signal data bus. | GND/IOVCC |
| 13-20 | G0-G7 | I/O | Green signal data bus. | GND/IOVCC |
| 21-28 | B0-B7 | I/O | Blue signal data bus. | GND/IOVCC |
| 29 | GND | PWR SUPPLY | Power ground. | - |
| 30 | PCLK | I/O | Dot clock signal. | - |
| 31 | DISP | I/O | Display control / standby mode selection. | GND/IOVCC |
| 32 | HSYNC | I/O | Horizontal sync input. | GND/IOVCC |
| 33 | VSYNC | I/O | Vertical sync input. | GND/IOVCC |
| 34 | DE | I/O | Data enable signal. | GND/IOVCC |
| 35 | NC | - | No connect. | - |
| 36 | GND | PWR SUPPLY | Power ground. | - |
| 37 | XL | - | TP left signal. | - |
| 38 | YD | - | TP down signal. | - |
| 39 | XR | - | TP right signal. | - |
| 40 | YU | - | TP up signal. | - |
