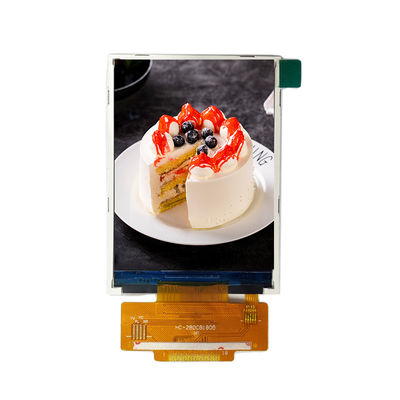

4 Wire SPI LCD Display 240x320 2.8 Inch Lcd Display ILI9341V 65K Color
| Place of Origin | China |
|---|---|
| Model Number | JC2432A028R |
| Minimum Order Quantity | 500 |
| Price | ￥39/pcs |
| Delivery Time | 28day |
| Payment Terms | L/C, T/T |
| Supply Ability | 5000pcs/day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 2.8inch | Resolution | 240*320 |
|---|---|---|---|
| Touch | Resistance Touch | Name | JC2432A028R |
| Driver IC | ILI9341V | Outline Dimension | 69.20(L)X50.00(W)X2.30(H)MM |
| Visual Angle | 12:00 O'clock | Product Weight( | 20g |
| Highlight | 4 Wire SPI LCD Display 240x320,2.8 Inch Lcd Display ILI9341V,2.8 Inch Lcd Display 65K Color |
||
Product Description
- 2.8 inch 2.8”CTC LCD ILI9341V TFT LCD Display Screen.
- DC 3.3V 2.8 inch TFT LCD Display Module ILI9341V Driver 4 Wire SPI Interface 240x320.
- Industrial quality.
- Long-term stable supply.
- With a wide range of standard and customized LCD and TFT modules, BACKLIGHT. We offer to customers the solutions and technologies best suited for the applications.
- Our products have been applied in a wide range of industries including financial devices, energy meter equipment, check-in machines, fiscal processors, portable devices, intelligent home solutions, medical facilities and industrial equipment.
| Name | Parameter |
| SKU | JC2432A028R |
| Display Color | RGB 65K color |
| Touch mode | Resistance touch |
| Screen Size | 2.8(inch) |
| Type | TFT |
| Driver IC | ILI9341V |
| Resolution | 240*320 (Pixel) |
| Module Interface | 4-wire SPI |
| Active Area | 57.60(L)X43.20(W)MM |
| External dimension | 69.20(L)X50.00(W)X2.30(H)MM |
| Operating Temperature | -20℃~60℃ |
| Storage Temperature | -30℃~70℃ |
| Operating Voltage | 3.3V |
| Visual angle | 12:00 o'clock |
| Product Weight(Package containing) | 20(g) |
Interface Definition
| Number | Pin Label | Pin Description |
| 1 | GND | Power ground |
| 2 | RESET | LCD reset signal, low level reset |
| 3 | SCL | Clock signal |
| 4 | D/C | Instruction Data Selection L: Instruction H: Data |
| 5 | CS | LCD chip select signal, active low |
| 6 | SDA | Control data transmission |
| 7 | SDO | Control data output |
| 8 | GND | Power ground |
| 9 | VCC | 2.8~3.3V power input |
| 10 | LEDA | Backlight LED positive extreme |
| 11 | K1 | Backlight LED negative extreme |
| 12 | K2 | Backlight LED negative extreme |
| 13 | K3 | Backlight LED negative extreme |
| 14 | K4 | Backlight LED negative extreme |
| 15 | XL | Touch x axis |
| 16 | YU | Touch y axis |
| 17 | XR | Touch x axis |
| 18 | YD | Touch y axis |
