Round 1.28 Inch SPI LCD Display 240*240 Gc9a01 Display Screen Without Touch
| Place of Origin | China |
|---|---|
| Model Number | JC2424A012N |
| Minimum Order Quantity | 500 |
| Price | ￥15/pcs |
| Delivery Time | 28day |
| Payment Terms | L/C, T/T |
| Supply Ability | 5000pcs/day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 1.28inch | Resolution | 240*240 |
|---|---|---|---|
| Touch | Without Touch | Name | JC2424A012N |

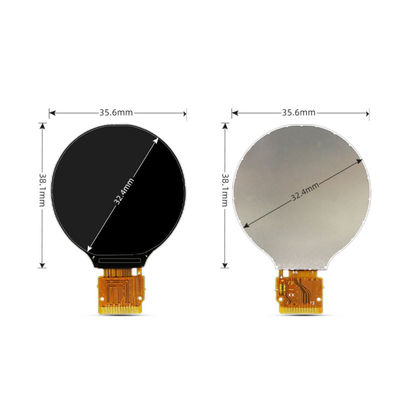

| Outline Dimension | 35.6*38.1*1.55(mm) | Visual Angle | IPS Full Viewing Angle |
| Highlight | Round 1.28 Inch SPI LCD Display,SPI LCD Display 240*240 Gc9a01,Gc9a01 Display Screen Without Touch |
||
Product Description
- HD IPS 1.28 inch 1.28” Handheld LCD GC9A01 Round TFT LCD Display Screen for Smart Watch
- DC 3.3V 1.28 inch TFT LCD Display Module Round RGB 240*240 GC9A01 Driver 4 Wire SPI Interface 240x240 Resolution adapter PCB
- Full IPS Round Circle TFT LCD Screen 1.3inch 240*240 Circular IPS Display GC9A01 Driver
| Name | Parameter |
| SKU | JC2424A012N |
| Display Color | RGB 65K color |
| Touch mode | Without touch |
| Screen Size | 1.28(inch) |
| Type | TFT |
| Driver IC | GC9A01 |
| Resolution | 240*240 (Pixel) |
| Module Interface | 8-bit parallel interface |
| Active Area | 32.32.4(mm) |
| External dimension | 35.6*38.1*1.55(mm) |
| Operating Temperature | -20℃~60℃ |
| Storage Temperature | -30℃~70℃ |
| Operating Voltage | 3.3V |
| Visual angle | IPS |
| Product Weight(Package containing) | 15(g) |
Interface Definition
| Number | Pin Label | Pin Description |
| 1 | GND | Power ground |
| 2 | LEDK | LED Cathode |
| 3 | LEDA | LED Anode |
| 4 | VDD | Power supply for Analog |
| 5 | GND | Power ground |
| 6 | GND | Power ground |
| 7 | D/C | Display data/command selection pin |
| 8 | /CS | Chip selection pin |
| 9 | SCL | Clock signal |
| 10 | SDA | Control data transmission |
| 11 | RESET | LCD reset signal, low level reset |
| 12 | GND | Power ground |
