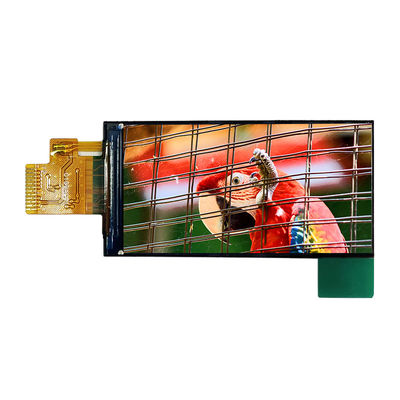

1.9 Inch Lcd Tft Spi 170*320 ST7789 SPI TFT Module 1.9 Inch Smart Display Screen
| Place of Origin | China |
|---|---|
| Model Number | JC1732A019N |
| Minimum Order Quantity | 500 |
| Price | ￥18/pcs |
| Delivery Time | 28day |
| Payment Terms | L/C, T/T |
| Supply Ability | 5000pcs/day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 1.9 Inch | Resolution | 170*320 |
|---|---|---|---|
| Touch | Without Touch | Name | JC1732A019N |
| External Dimension | 49.72(L)X25.8(W)X1.47(H)MM | Active Area | 42.72(L)X22.7(W)MM |
| Highlight | 1.9 Inch Lcd Tft Spi 170*320,ST7789 SPI TFT Module,ST7789 Lcd Tft Spi |
||
Product Description
- 1.9 inch 1.9”CTC LCD ST7789 TFT LCD Display Screen.
- DC 3.3V 1.9 inch IPS TFT LCD Display Module ST7789 Driver 4 Wire SPI Interface 170x320.
- Industrial quality.
- Long-term stable supply.
- With a wide range of standard and customized LCD and TFT modules, BACKLIGHT. We offer to customers the solutions and technologies best suited for the applications.
- Our products have been applied in a wide range of industries including financial devices, energy meter equipment, check-in machines, fiscal processors, portable devices, intelligent home solutions, medical facilities and industrial equipment.
| Name | Parameter |
| SKU | JC1732A019N |
| Display Color | RGB 65K color |
| Touch mode | Without touch |
| Screen Size | 1.9(inch) |
| Type | TFT |
| Driver IC | ST7789 |
| Resolution | 170*320 (Pixel) |
| Module Interface | 4-wire SPI |
| Active Area | 42.72(L)X22.7(W)MM |
| External dimension | 49.72(L)X25.8(W)X1.47(H)MM |
| Operating Temperature | -20℃~60℃ |
| Storage Temperature | -30℃~70℃ |
| Operating Voltage | 3.3V |
| Visual angle | IPS |
| Product Weight(Package containing) | 10(g) |
Interface Definition
| Number | Pin Label | Pin Description |
| 1 | GND | Power ground |
| 2 | LEDK | Backlight LED negative extreme |
| 3 | LEDA | Backlight LED positive extreme |
| 4 | VCC | 2.8~3.3V power input |
| 5 | GND | Power ground |
| 6 | GND | Power ground |
| 7 | D/C | Instruction Data Selection L: Instruction H: Data |
| 8 | CS | LCD chip select signal, active low |
| 9 | SCL | Clock signal |
| 10 | SDA | Control data transmission |
| 11 | RESET | LCD reset signal, low level reset |
| 12 | GND | Power ground |
